Product attributes
Brand：EVERTOP
Models：PL-6
Certificate： CE
Country of origin： CHINA
Trading information
Minimum minimum order size ：1 Set
Price：USD 5,000 – 50,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case
Product description
Technical Parameter

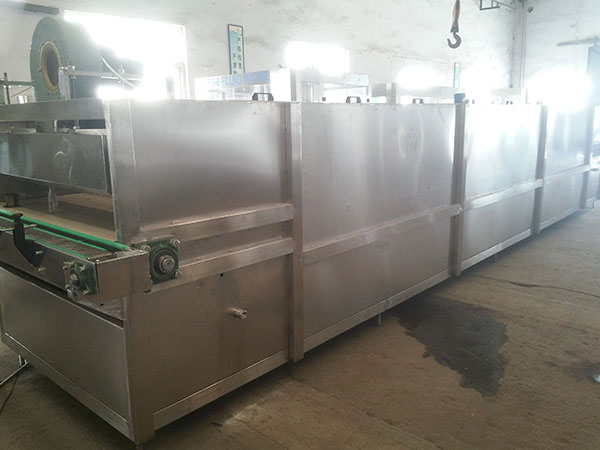

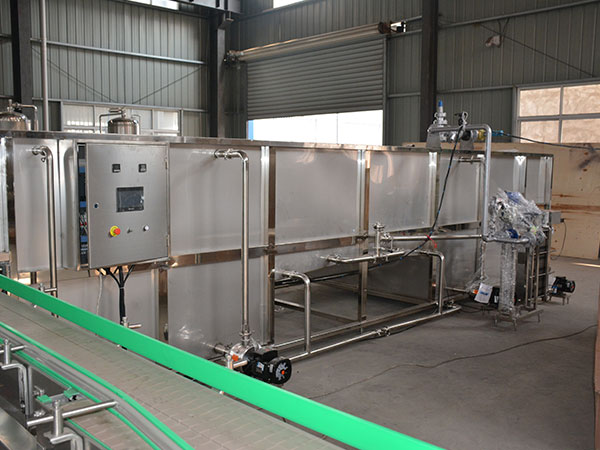

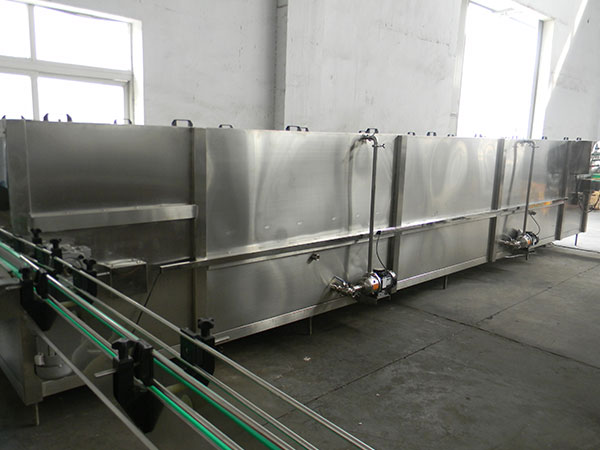

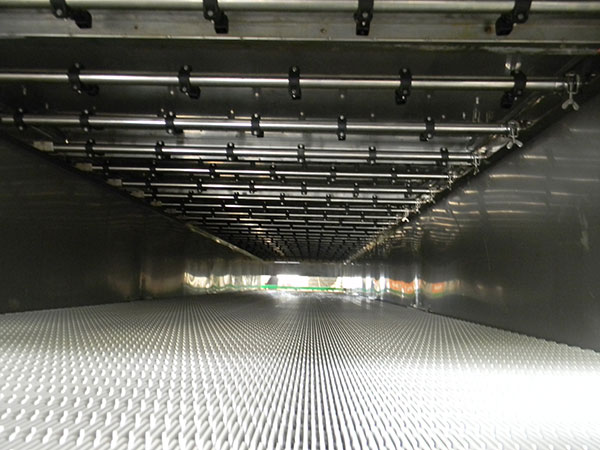

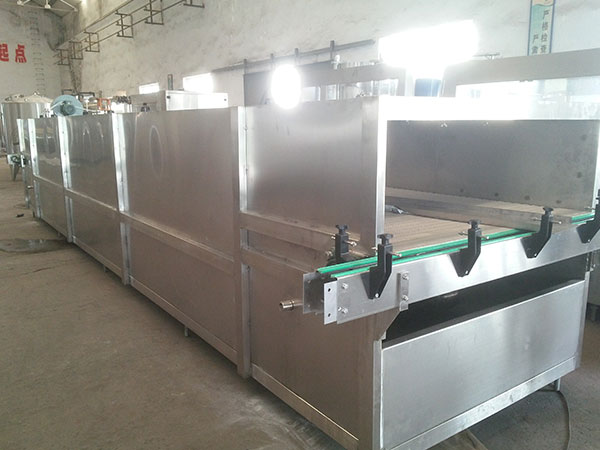

This machine tunnel can pasteurize the beverage and reduce the temperature of hot filling drinks to 36-40, or increase the temperature of cold filling carbonated drinks to 36-40. It is used in bottled hot tea drinks and carbonated drinks filling production line. This machine can eliminate the condensed water on the external side of bottles, keep bottle clean and dry. It makes bottles easier for labeling and packaging.
Productivity: 3000-36000bottles/hour, spray time: about 15-20 minutes.
| Model | ET4000 | ET6000 | ET12000 | ET36000 |
| Production capacity(b/h) | 3000-5000 | 6000-9000 | 10000-15000 | 24000-36000 |
| Temperature (℃) | 37~45 | 37~45 | 37~45 | 37~45 |
| Cooling time (min) | 12~15 min | 12~15 min | 12~15 min | 12~15 min |
| Conveying speed | 100~550 | 100~550 | 100~550 | 100~550 |
| Width of chain(m) | 1.22 | 1.22 | 1.22 | 1.22 |
| Steam pressure (MPa) | <0.4 | <0.4 | <0.4 | <0.4 |
| Water consumption(m3/h) | 6 | 9 | 15 | 28 |
| Steam consumption(kg/h) | 80 | 120 | 250 | 280 |
| Motor power(kw) | 6 | 7.55 | 8.6 | 18 |
| Dimension (mm) | 6200×1500×1700 | 15800×1500×1700 | 15800×1800×1700 | 22000×800×1700 |
| Weight (kg) | 2500 | 3200 | 4300 | 5600 |
