Product attributes
Brand：EVERTOP
Models： BXGF18-18-6
Certificate： CE
Country of origin： CHINA
Trading information
Minimum minimum order size ：1 Set
Price：USD 15,000 – 150,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case
Product description

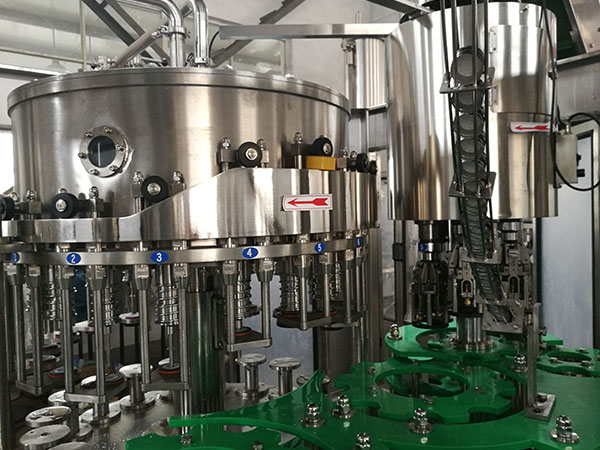

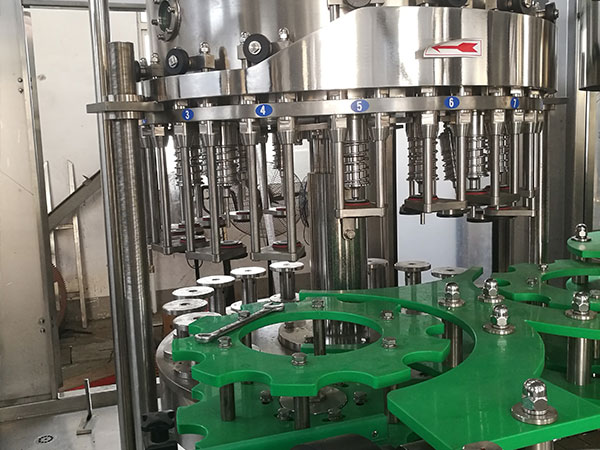

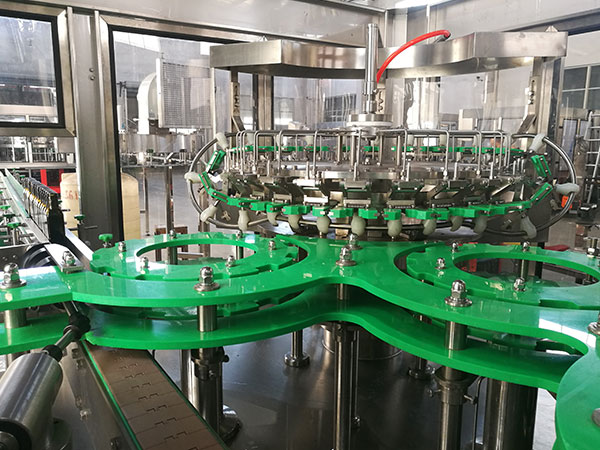

Glass bottle filling machine is applied to the production of grape wine, red wine, water, vodka, alcohol, liquor etc.
This series machine integrates washing, filling and capping into one unit.

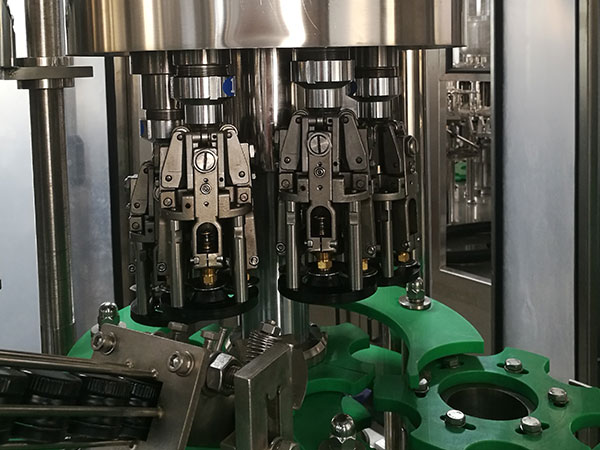

The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete washing of the interior of the bottle.
The advanced micro negative-pressure filling technology used in this machine makes the filling quick, steady and accurate. The beverage -holding tank is fully-closed, and temperature control device and CIP washing interface are installed.
Advanced technologies, such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.
The machine adopts the international popular design technology. Its design is scientific and reasonable, appearance is beautiful, operation and maintenance are convenient, and it is with high degree of automation.
It is a good option for wine factory.
| Model | BXGF16-12-6 | BXGF18-18-6 | BXGF24-24-8 | BXGF32-32-10 | BXGF40-40-12 |
| Production capacity(b/h) | 2000-3000 | 3000-5000 | 5000-7000 | 7000-10000 | 10000-12000 |
| Suitable bottle diameter(mm) | φ=50-110mm H=170-310mm (Volume: 100-1000ml) | ||||
| Main Motor power | 4.0kw | 4.2kw | 5.2kw | 6.2kw | 7.5kw |
| Overall dimension (L x W x H) mm | 2230×1630×2250 | 2600×1965×2250 | 2900×2200×2250 | 3880×2200×2250 | 3700×3000×2350 |
| Weight (Kg) | 3500 | 4000 | 4500 | 6000 | 7000 |
