Product attributes
Brand：EVERTOP
Models： BRXGF24-24-8
Certificate： CE
Country of origin： CHINA
Trading information
Minimum minimum order size ：1 Set
Price：USD 15,000 – 150,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case
Product description

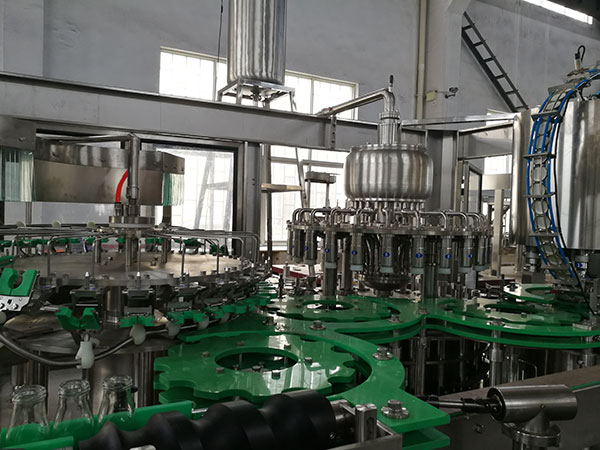

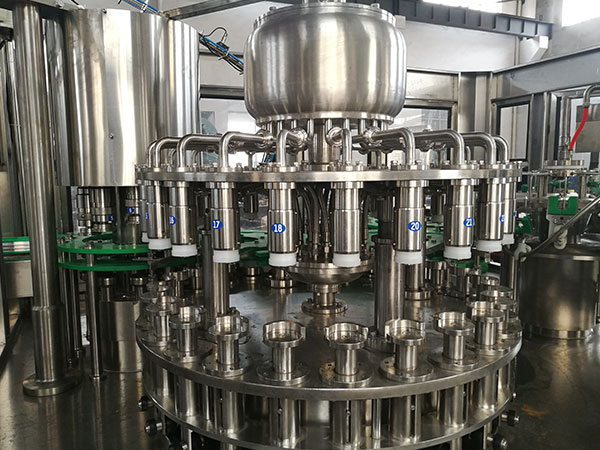

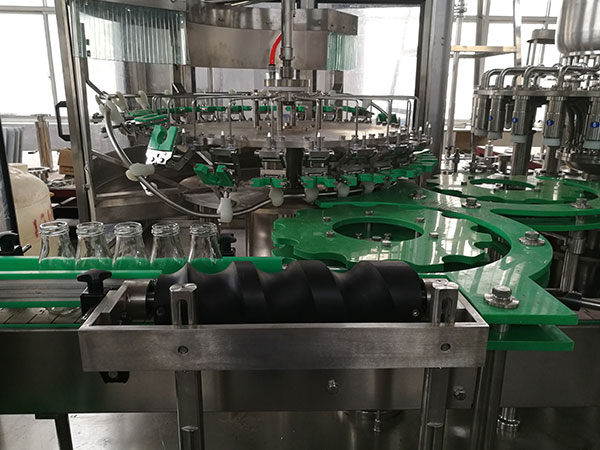

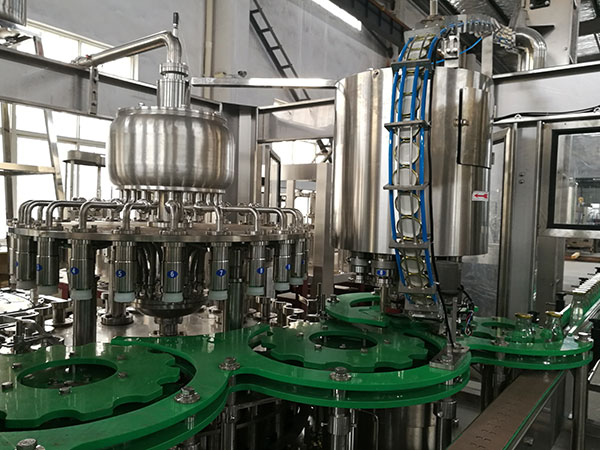

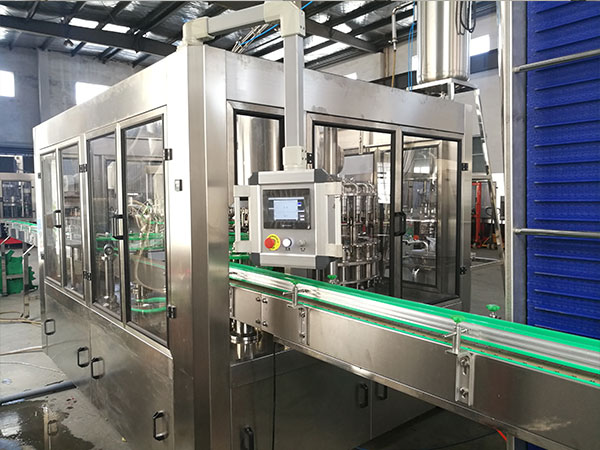

This glass bottle filling machine is mainly used for juice, vinegar, soy sauce, tea, milk, energy beverage, water etc.
1. It can conduct the filling process into different kinds of bottles on one machine.
2. The main machine adopts automatic control technology of PLC and transducer with high degree of automation.
3. This machine uses new generation stainless steel spring washing clips and the clips do not contact the upside of bottle screw avoiding the second pollution. It can both clear the inside and the outside of the bottle.
4. The filling principle of micro negative pressure increases the precision.
5. Applying magnetic force screw type sealing, realizing auto grasping cap, sealing, the sealing cap force can be adjusted.
6. Perfect filling temperature control system, reflux tank system has the function of supplying the material automatically, perfect CIP system.
7. To realize stable running, convenient for maintenance and long life, independent electricity box makes sure every electrical appliance works normally, all the electric and pneumatic components are from world famous manufacturer. Example, PLC from MITSUBISHI, transducer from MITSUBISHI, pneumatic components from FESTO, switch from SCHNEIDER
8. The noise is low and the overall machine is easy to maintain.
| Model | Washing Heads | Filling Heads | Capping Heads | Production Capacity(500ml) | Motor Power |
| BRXGF16-12-6 | 16 | 12 | 6 | 2000-3000b/h | 4.4KW |
| BRXGF18-18-6 | 18 | 18 | 6 | 4000-5000b/h | 5.2KW |
| BRXGF24-24-8 | 24 | 24 | 8 | 6000-8000b/h | 5.2KW |
| BRXGF32-32-10 | 32 | 32 | 10 | 9000-12000b/h | 6.2KW |
| BRXGF40-40-12 | 40 | 40 | 12 | 13000-15000b/h | 7.8KW |
| BRXGF50-50-12 | 50 | 50 | 15 | 15000-20000b/h | 8.5KW |
